Rotork YTC YT-3300 Smart Valve Positioner Accurately Operator Optimizes The Position

Introduction 1.1 General Information for the users Thank you for purchasing Rotork YTC Limited products. Each product has been fully inspected after its production to offer you the highest quality and reliable performance. Please read the product manual carefully prior to installing and commissioning the product. ➢ Installation, commissioning, and maintenance of the product may only be performed by trained specialist personnel who have been authorized by the plant operator accordingly. ➢ The manual should be provided to the end-user. ➢ Factory Mutual approved Intrinsically Safe and Non-Incendive units must be Installed Per drwg SKC_18601_150326.pdf ➢ CSA approved Intrinsically Safe and Non-Incendive units must be Installed Per drwg SKC8465.pdf ➢ The manual can be altered or revised without any prior notice. Any changes in product’s specification, design, and/or any components may not be printed immediately but until the following revision of the manual. ➢ When the manual refers to “Valve Zero / Zero” means the final valve position upon pneumatic pressure has been fully exhausted from positioner’s OUT1 port. For example, the valve zero position may differ between linear direct and reverse actions. (DA/RA) ➢ The manual should not be duplicated or reproduced for any purpose without prior approval from Rotork YTC Limited, Gimpo-si, South Korea. ➢ In case of any other problems that are not stated in this manual, please make immediate contact to Rotork YTC Limited. ➢ Positioner is an accessory of the control valve, so please make sure to read the applicable instruction manual of the control valve prior to installation and operation. 1.2 Manufacturer Warranty ➢ For the safety, it is important to follow the instructions in the manual. Manufacturer will not be responsible for any damages caused by user’s negligence. ➢ Any modifications or repairs to the product may only be performed if expressed in this manual. Injuries and physical damages caused by customer’s modifying or repairing the product without a prior consultation with Rotork YTC Limited will not be compensated. If any alterations or modifications are necessary, please contact Rotork YTC Limited directly. ➢ The warranty period of the product is (18) months from the date of shipment unless stated otherwise. Date of shipment can be checked by providing the LOT NO. or SERIAL NO. to us. Smart Positioner YT-3300 / 3350 / 3303 / 3301 / 3302 series (New Software) Product Manual Ver. 2.18 7 ➢ Manufacturer warranty will not cover products that have been subjected to abuse, accidents, alterations, modifications, tampering, negligence, misuse, faulty installation, lack of reasonable care, repair or service in any way that is not contemplated in the documentation for the product, or if the model or serial number has been altered, tampered with, defaced or removed; damages that occurs in shipment, due to act of God, failure due to power surge, or cosmetic damage. Improper or incorrectly performed maintenance will void this limited warranty. ➢ For detailed warranty information, please contact the corresponding local Rotork YTC Limited office or main office in South Korea. 1.3 Explosion Proof Warning (Only for Intrinsic safety type positioners) Please ensure the unit is being used and installed in conformity with local, regional, and national explosion proof within the proper safety barrier environment. ➢ Refer to “2.6 Certifications” ➢ Explosion proof type of cables and gaskets should be used, when explosion gases are present at the installation site. ➢ Positioner has 2 ports for power connection. Explosion proof type wires and packing should be used. Blind plug is required when any port is not being used. ➢ Ring terminal with surface area of more than 1.25 mm2 with M4 spring washer should be used to connect the power. ➢ For external ground terminal, ring terminal with surface area of more than 5.5 mm2 should be used. ➢ Wiring in these applications shall utilize appropriate methods for Class I, Division 2 / Zone 2 ➢ Substitution of components may impair intrinsic safety. ➢ WARNING – EXPLOSION HAZARD – Substitution of components may impair suitability for Class I, Division 2. ➢ “AVERTISSEMENT – RISQUE D'EXPLOSION – Remplacement des composants peut nuire à la conformité de Classe I, Division 2” ➢ EXPLOSION HAZARD. Do not connect or disconnect wiring unless all sources of power have been removed or the area is known to be non-hazardous. (French) RISQUE D'EXPLOSION. Ne pas raccorder ou débrancher le câblage à moins Toutes les sources d'énergie ont été enlevées ou la zone est connue pour être non dangereux. ➢ The enclosure of models YT-3300, YT-3301, and YT-3303 contains aluminum, which is considered to constitute a potential risk of ignition when subjected to impact or friction. Care must be used during installation in locating this equipment to prevent impact or friction ➢ Some of the enclosure parts are made of non-metallic materials. To prevent the risk of Electrostatic sparking, clean the enclosure only with a damp cloth. ➢ The product must be installed in such a manner as to minimize the risk of impact or friction with other metal surfaces. Smart Positioner YT-3300 / 3350 / 3303 / 3301 / 3302 series (New Software) Product Manual Ver. 2.18 8 ➢ For Intrinsically Safe installations, the product must be connected to suitably rated intrinsically safe equipment, and must be installed in accordance with applicable intrinsically safe installation standards. ➢ Special conditions for safe use of sign “X” of ATEX / IECEx

Accurately Smart Valve Positioner

Rotork YTC YT-3300 Smart Valve Positioner

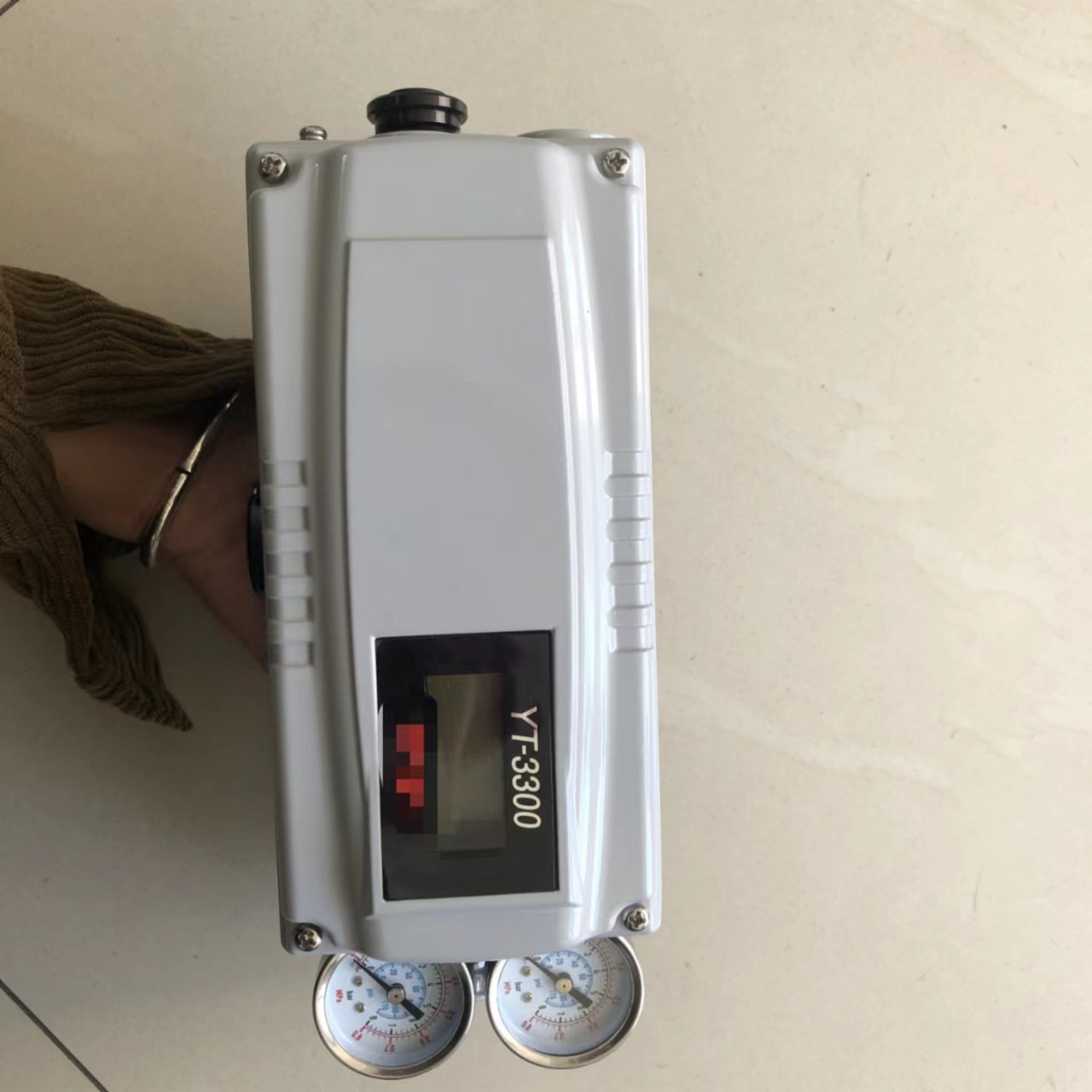

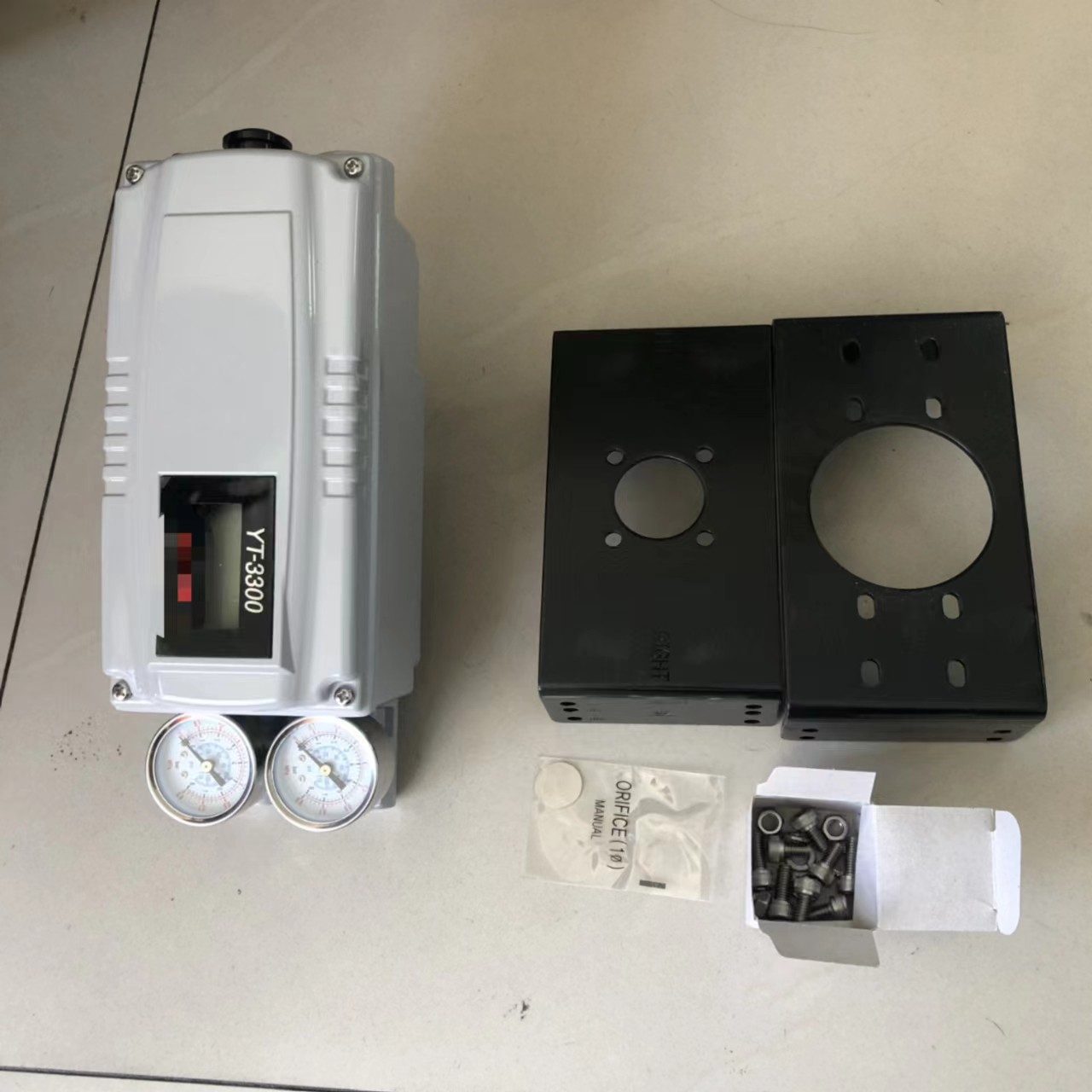

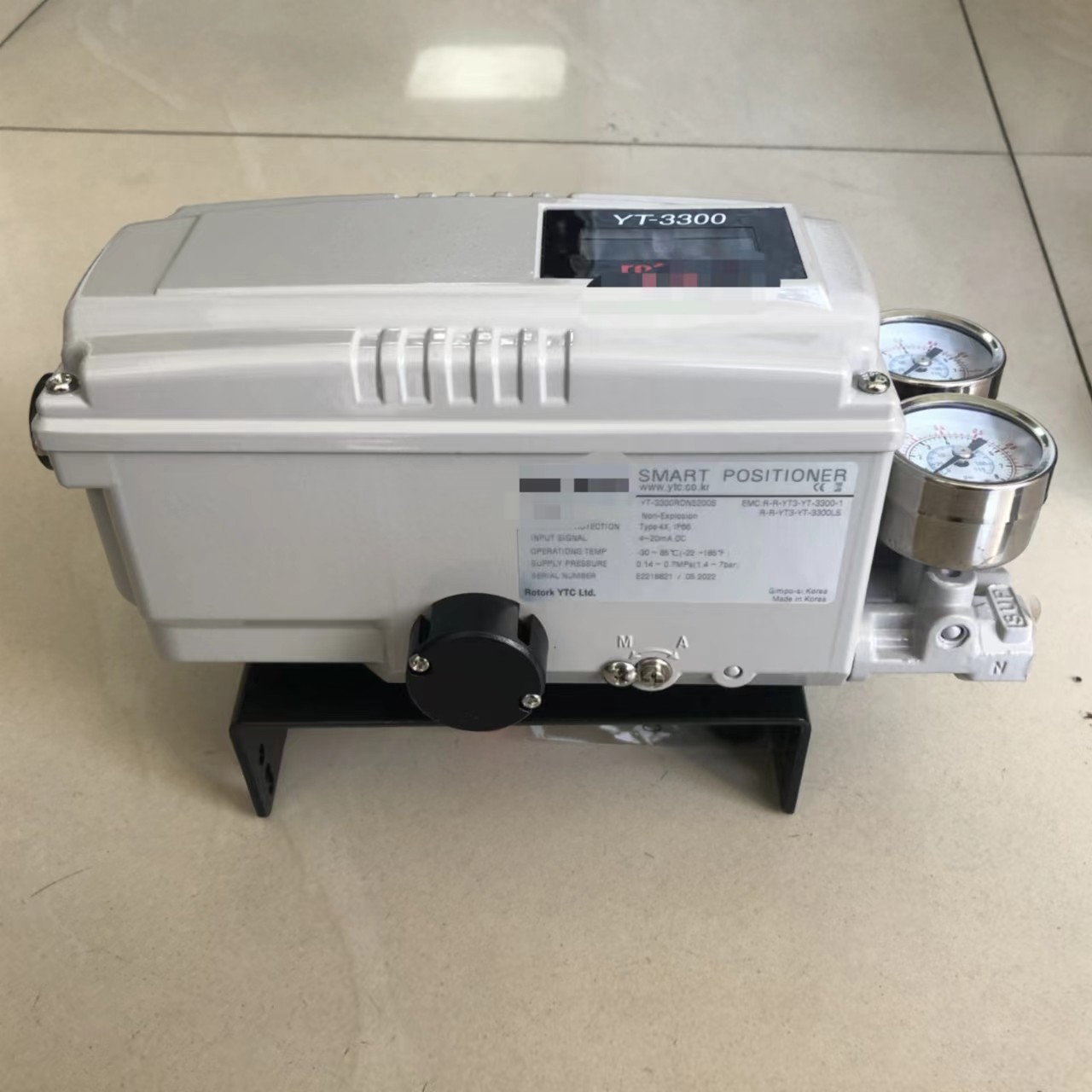

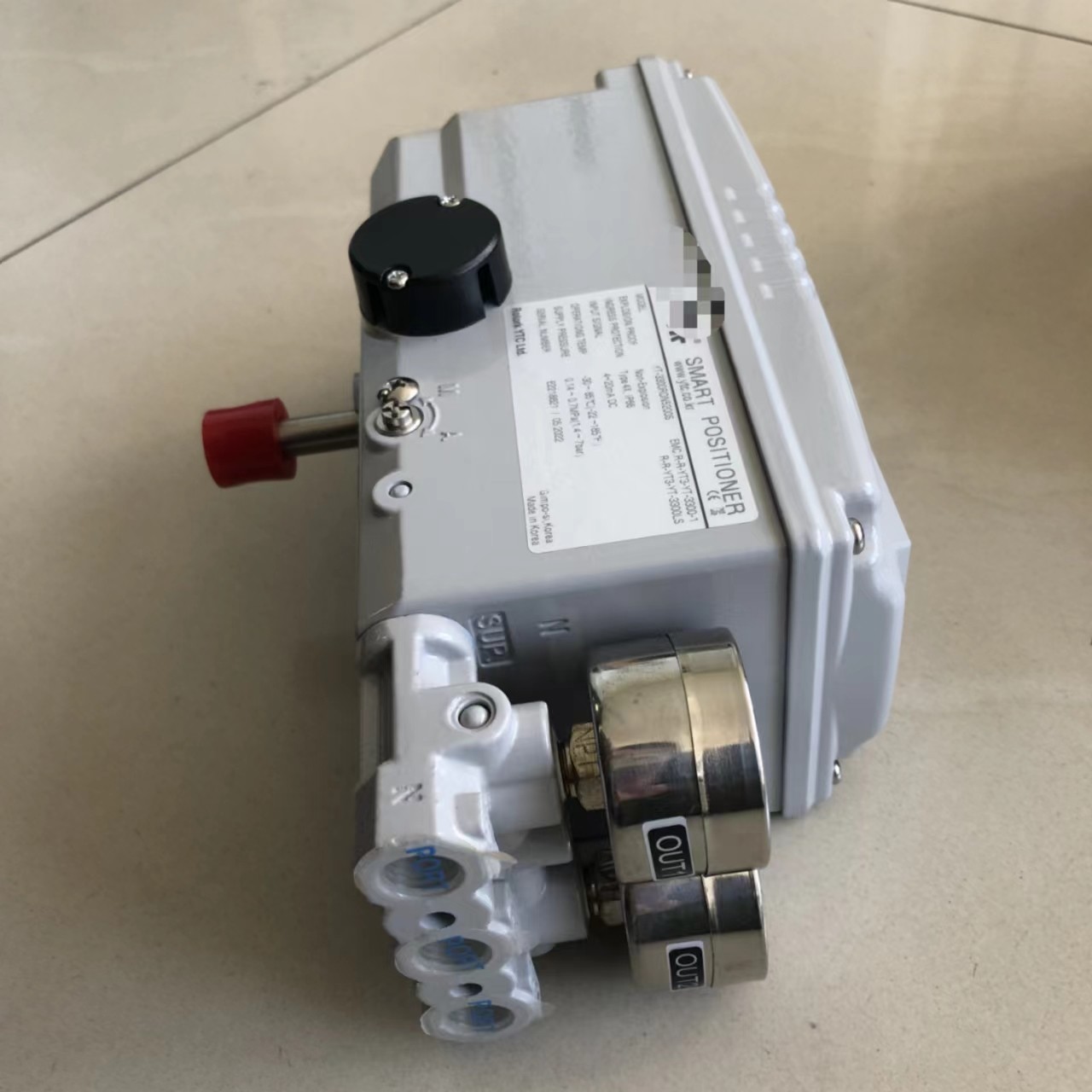

Rotork YTC YT-3300 Smart Valve Positioner Accurately Operator Optimizes The Position Images
