Emerson AVENTICS – 5610141550 – E/P Pressure Regulator, Series ED05 (ED05-000-100-DDL-3M12X)

Name: Emerson AVENTICS 5610141550 EP Pressure Regulator Series ED05 ED05000100DDL3M12X
Brand: Emerson
Price: 670 USD

Quality Emerson AVENTICS – 5610141550 – E/P Pressure Regulator, Series ED05 (ED05-000-100-DDL-3M12X) wholesale

Brand Name : Emerson

Model Number : 5610141550

Certification : CE

Place of Origin : china

MOQ : 1

Price : USD$670

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500pc

Delivery Time : 1week

Packaging Details : carton

Type : Poppet valve

Certificates : CE declaration of conformity

Control : serial

Hysteresis : < 0,06 bar

Contact Now

Type: Poppet valve

Certificates: CE declaration of conformity

Working pressure min.: 0 bar

Working pressure max: 11 bar

Min. ambient temperature: 0 °C

Max. ambient temperature: 50 °C

Compressed air connection input: G 1/4

Compressed air connection output: G 1/4

Compressed air connection, exhaust: G 1/4

Medium: Compressed air

Nominal flow Qn: 1000 l/min

Control: serial

DC operating voltage: 24 V

Hysteresis: < 0,06 bar

Mounting orientation: α = 0-90° β = 0-90°

Permissible ripple: 5%

Protection class: IP65

Electrical connection: Plug

Electrical connection: M12

Electrical connection: 4-pin

Electrical connection: shielded cable required

Communication port: Plug, Socket

Communication port: M12

Communication port: 5-pin

Regulation range min.

0 bar

Weight	1.598 kg
Electrical interface	M12
Connection output	G 1/4
Connection exhaust	G 1/4
Flow Qn	1000l/min
Ambient Temperature Max	50DegC
Ambient Temperature Min	0DegC
Connection input	G 1/4
Working Pressure Max	11 Bar
Working Pressure Min	0 Bar
Voltage	24V DC

Product Tags:

Emerson AVENTICS E/P pressure regulator

5610141550 E/P pressure regulator

Series ED05 E/P pressure regulator

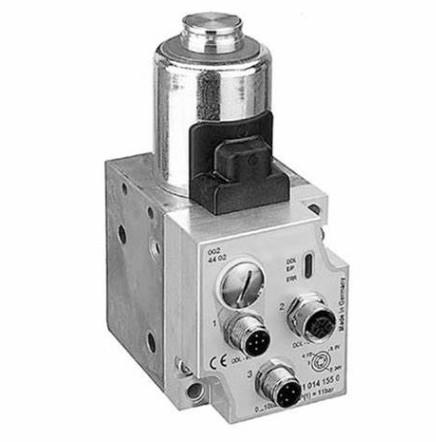

Emerson AVENTICS – 5610141550 – E/P Pressure Regulator, Series ED05 (ED05-000-100-DDL-3M12X) Images
