636D-0 636D-1 Dwyer Series 636D Fixed Range Differential Pressure Transmitter Wetted Materials Types 316L SS

Name: 636D0 636D1 Dwyer Series 636D Fixed Range Differential Pressure Transmitter Wetted Materials Types 316L SS
Brand: Dwyer
Price: 60 USD

Quality 636D-0 636D-1 Dwyer Series 636D Fixed Range Differential Pressure Transmitter Wetted Materials Types 316L SS wholesale

Brand Name : Dwyer

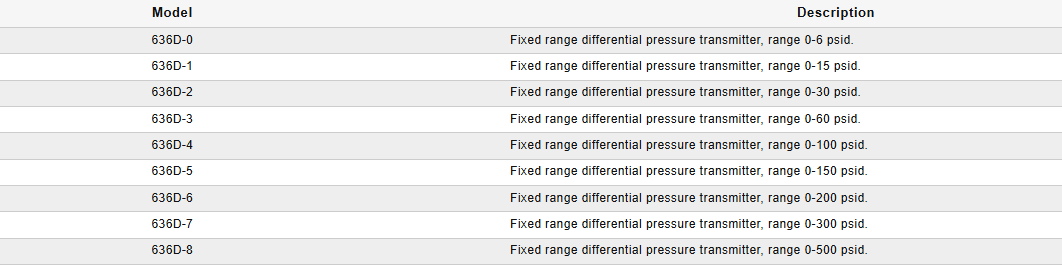

Model Number : 636D-0 636D-1

Certification : CCC,CE

Place of Origin : USA

MOQ : 1

Price : USD$60/PC

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10

Delivery Time : 6 Weeks

Packaging Details : Original case

Service : Compatible gases, liquids or vapors

Wetted Materials : Types 316L SS

Accuracy : BFSL: ±0.5% F.S.

Stability : ±1.0% F.S./yr.

Pressure Limits : 3 x full scale differential pressure; burst: 2500 psig.

Temperature Limits : Ambient Operating: -40 to 140°F (-40 to 60°C)

Compensated Temperature Range : -20 to 160°F

Thermal Effect : ±2% F.S./50°F

Output Signal : 12-30 VDC for 4-20 mA outputs

Zero and Span Adjustments : 4 to 20 mA DC or 1-5 VDC

Contact Now

Dwyer Series 636D Fixed Range Differential Pressure Transmitter 636D-0 636D-1

Series 636D Differential Pressure Transmitter can be used for measuring pressures of liquids, gases & vapors. All available ranges have an excellent 0.5% F.S. accuracy with a 4-20 mA Output standard or optional 1-5 VDC output. The NEMA 4 housing is an all 316 welded construction that is designed to withstand the harshest environmental conditions. With all 316L wetted materials, this transmitter is compatible with most media. These units are CSA approved explosion-proof for use in the specified hazardous locations and meet NACE standards for off-shore applications.

Features
NEMA 4X rated enclosure provides protection in harsh environments permitting outdoor monitoring or in areas where dust and particulate matter exists
Explosion-proof device for use in hazardous areas
Versatile, high-accuracy device for liquid or gas supports designs requiring more precise measurements in support of application

636D-0 636D-1 Dwyer Series 636D Fixed Range Differential Pressure Transmitter Wetted Materials Types 316L SS
