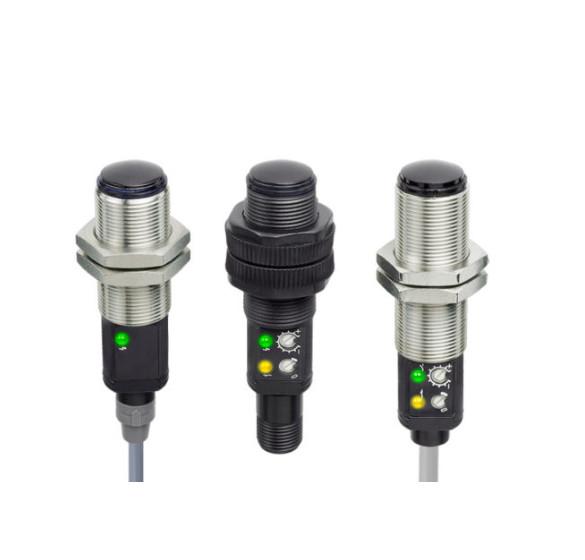

70m Industrial Automation Thru Beam SM3000/CAT2 SM6000

Name: 70m Industrial Automation Thru Beam SM3000CAT2 SM6000
Brand: Telco
Price: 20 USD

Quality 70m Industrial Automation Thru Beam SM3000/CAT2 SM6000 wholesale

Brand Name : Telco

Model Number : SMT 3000C TP18 J

Certification : CE

Place of Origin : Denmark

MOQ : 1

Price : USD$20/Piece

Payment Terms : D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000

Delivery Time : 5-10 Work days

Packaging Details : Carton

Type : Photoelectric Sensor

Usage : Industrial automation

Sealing class : IP 67 A

Number of Wire : 3

Supply voltage : 10 ~30 V dc

Operating Temperature : -20 to +50 ℃

Contact Now

Original Telco Thru Beam Sensor SpaceMaster Series SM3000/CAT2 SM6000 SM7000 SM9000 0-70m

SMT 3000C TP18 J

Thru Beam

Photoelectric Sensors

Description

NEW TELCO SMT 300C TP18 J-RY PROXIMITY SENSOR 0466183582 SMT300CTP18JRY 70m Industrial Automation Thru Beam SM3000/CAT2 SM6000

70m Industrial Automation Thru Beam SM3000/CAT2 SM6000

Product Data

Operation Mode	Thru Beam
Function	Transmitter
Supply Voltage	10 - 30 V dc
Light Source	Infrared (880 nm)
Control Feature	Adjustable range and test input
Sensing Range	6 m
Housing	M18 x 1
Housing Material	Plastic
Connection	4 pin, M12 plug

Technical Data

Supply Voltage	10 - 30 V dc
Voltage Ripple	15 %
Reverse Polarity Protected	Yes
Current Consumption	Max. 30 mA
Test Input	Yes
Control Input	Adjustable range
Power On Indicator	Green LED
Light Source	Infrared (880 nm)
Emission Angle	+/- 10°
Housing Material, Front Lens	Polycarbonate
Housing Material, Sensor Housing	Polycarbonate

Environmental Data

Vibration	10 - 55 Hz, 0,5 mm
Shock	30 g
Operation Temperature	-20 to +50 °C
Storage Temperature	-40 to +80 °C
Sealing Class	IP 67

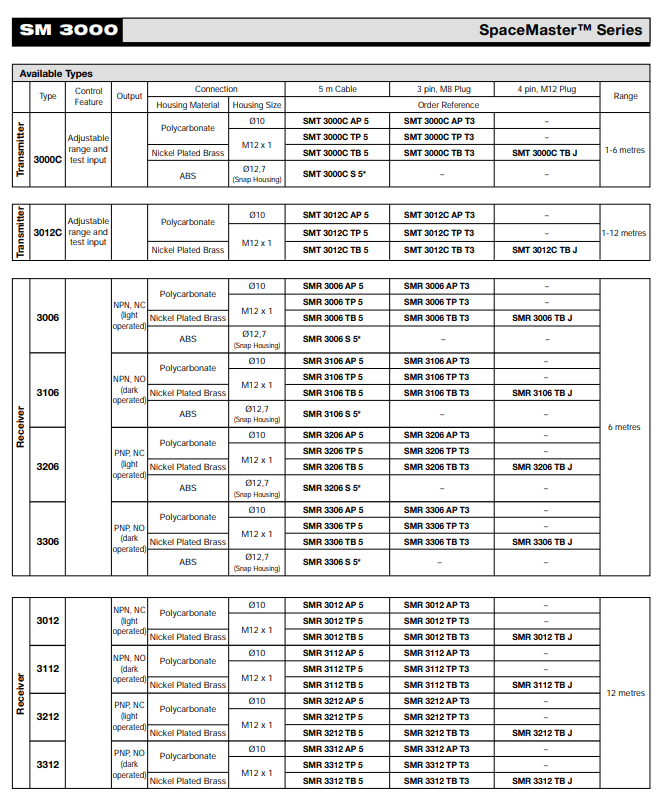

Compatible Receivers

SMR 3006 TP18 J
SMR 3106 TP18 J
SMR 3206 TP18 J
SMR 3306 TP18 J

Product Tags:

Thru Beam Photoelectric Sensor

70m Thru Beam Sensor

Industrial Thru Beam Sensor SM3000

70m Industrial Automation Thru Beam SM3000/CAT2 SM6000 Images
