WT2100 Coating Film Thickness Gauge For Measuring Non Magnetic Thickness

Name: WT2100 Coating Film Thickness Gauge For Measuring Non Magnetic Thickness
Brand: Wintact
Price: 60 USD

Quality WT2100 Coating Film Thickness Gauge For Measuring Non Magnetic Thickness wholesale

Brand Name : Wintact

Model Number : WT2110B

Certification : CE

Place of Origin : china

MOQ : 1

Price : USD$60/PC

Payment Terms : D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000

Delivery Time : 5-8 work days

Packaging Details : Plastic Box+Paper Carton

Product name : Coating Thickness Gauge

Color : Black

Size : 70.30*38.6*149.59mm

Weight : 136.9(including battery)

Measurement range : 0~1500μm/0~59mil/0~1.5mm

Resolution : ( 0.1μm(<100μm),1μm(≥100μm))/ 0.1mil/0.001mm

Measurement error : ≤150μm , ±5μm；>150μm , ±(3%H+1μm)

Minimum diameter of magnetic metal substrate : 12mm

Minimum thickness of magnetic metal substrate : 0.5mm

Minimum radius of curvature for magnetic convex substrate : 2mm

Minimum radius of curvature for magnetic concave substrate : 11mm

Minimum diameter of non- magnetic metal substrate : 50mm

Minimum thickness of non- magnetic metal substrate : 0.5mm

Battery : 3x1.2V NiMH battery (weight 36.5g) or 5V1Apower adapter

Contact Now

China Wintact WT2100 WT2110/2110B Wintact Coating/Film Thickness Gauge For Measuring Thickness Of Non-magnetic

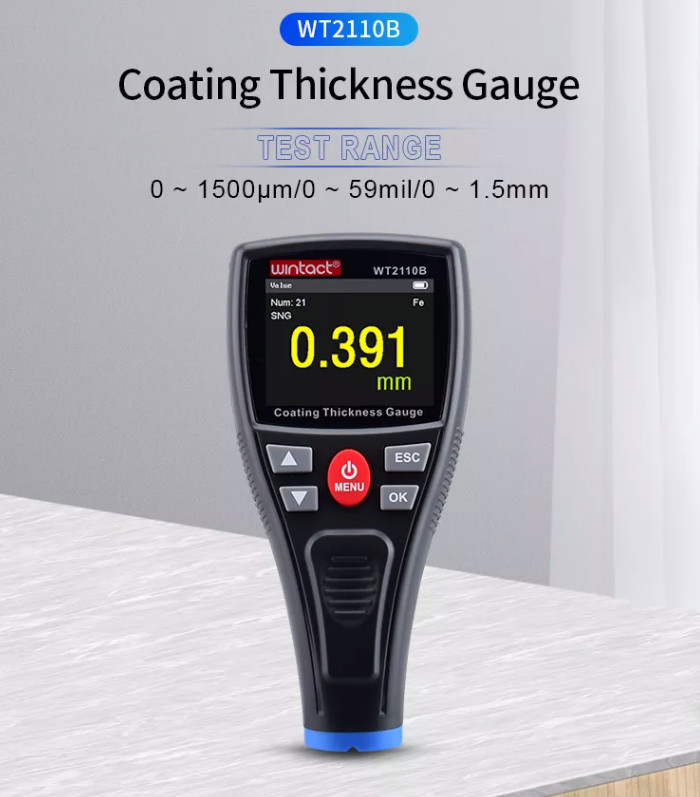

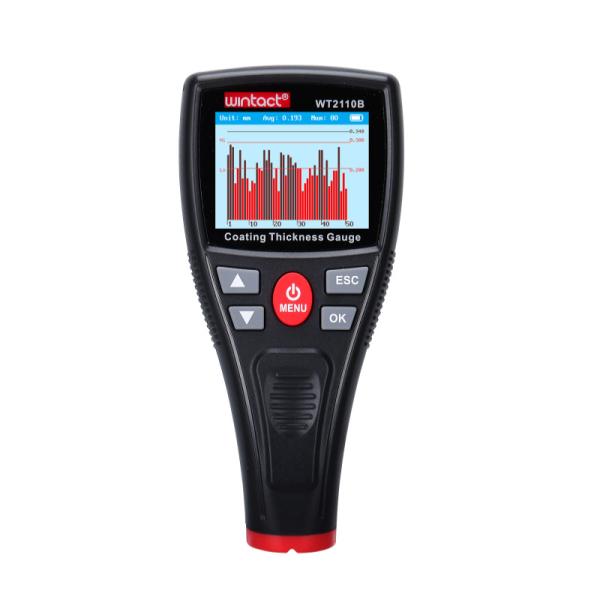

This product is a color-screen portable coating thickness gauge with high-definition display, which can quickly, non-destructively and accurately measure non-magnetic coating thickness on magnetic metal substrates and non-metallic coating thickness measurement on non-magnetic metal substrates. At the same time it can automatically identify magnetic metal substrate and non-magnetic metal substrate, and is widely used in manufacturing, metal processing industry, chemical industry,commodity inspection and other testing areas.

Coating Thickness Gauge possesses the following features:

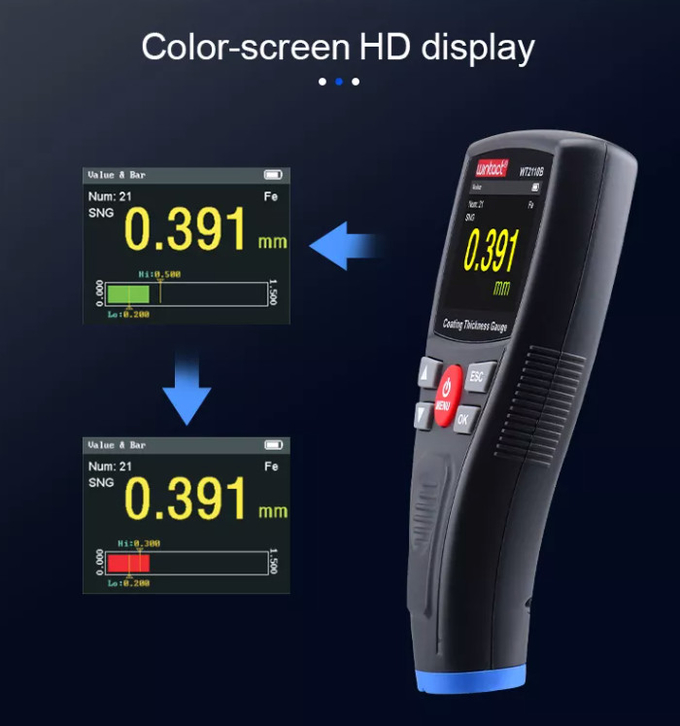

1.Menu operation and color-screen HD display.

2.Thickness measurement of non-magnetic coating on magnetic metal

substrate surface and non-metallic coating on nonmagnetic metal

substrate .

3.Two measurement methods: single measurement, continuous

measurement.

4.Three calibration modes: basic, offset, zero calibration.

5.Metric/imperial unit and storage function.

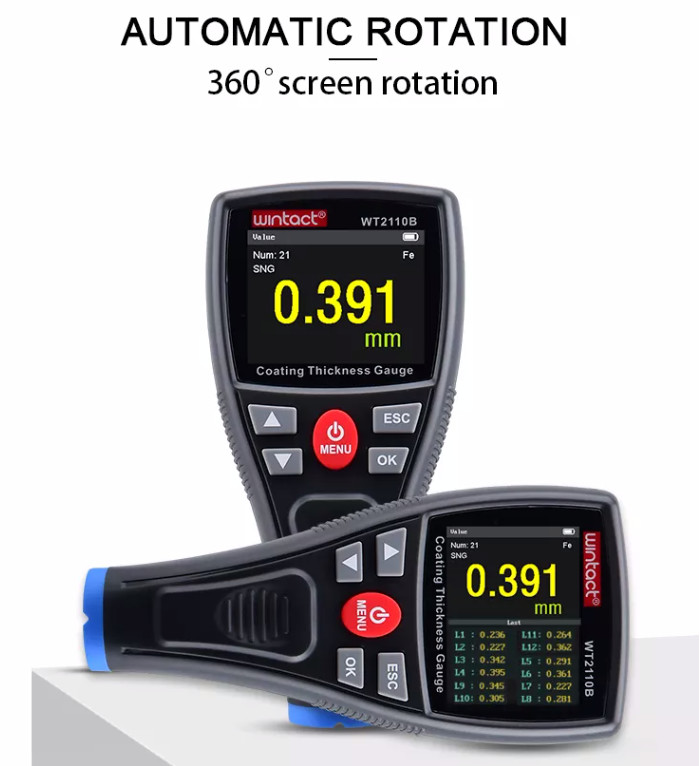

6.Screen rotation, charge protection, multi-interface displays,screen

brightness selection.

7.Automatic shutdown.

8.Bluetooth function(go with corresponding APP).

9.USB transport data(operating with PC software).

10.USB rechargeable.

Specifications

Measurement range	0~1500μm/0~59mil/0~1.5mm
Resolution	( 0.1μm(<100μm),1μm(≥100μm))/ 0.1mil/0.001mm
Measurement error	≤150μm , ±5μm
Measurement error	>150μm , ±(3%H+1μm)
Minimum diameter of magnetic metal substrate	12mm
Minimum thickness of magnetic metal substrate	0.5mm
Minimum radius of curvature for magnetic convex substrate	2mm
Minimum radius of curvature for magnetic concave substrate	11mm
Minimum diameter of non- magnetic metal substrate	50mm
Minimum thickness of non- magnetic metal substrate	0.5mm
Battery	3x1.2V NiMH battery (weight 36.5g) or 5V1Apower adapter
Size	70.3038.6149.59mm
Weight	136.9(including battery)

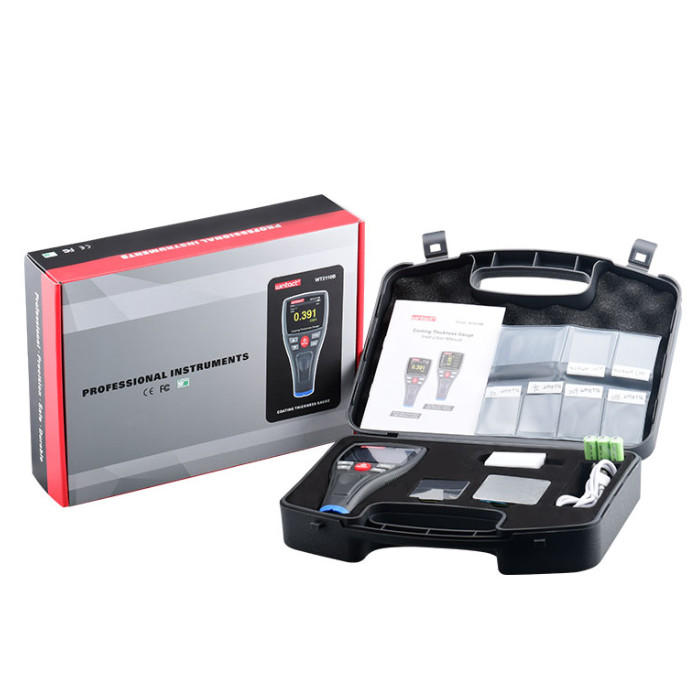

Accessories

Calibration sheet*6
Aluminum base*1
Iron base*1
USB cable*1
Manual *1
Host*1
PP box*1
Color box*1
Ni-MH rechargeable battery*3
Plug*1
