100% New Banner All Purpose Photoelectric Sensor Switch QS18VP6D

Name: 100 New Banner All Purpose Photoelectric Sensor Switch QS18VP6D
Brand: Banner
Price: 20 USD

Quality 100% New Banner All Purpose Photoelectric Sensor Switch QS18VP6D wholesale

Brand Name : Banner

Model Number : QS18VP6D

Certification : CCC

Place of Origin : America

MOQ : 1

Price : USD20/PC

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000

Delivery Time : 2-3Days

Packaging Details : Original

Usage : industrial automation

Output : PNP

Cable Length (m) 2 : DC

industrial automation : Proximity

Contact Now

Product Attribute

Attribute Value

Alternate Mfr Part Number

61654

Body Diameter

Body Style

Rectangular

Cable Length

2 m

Connection Type

Cable

Dimensions

31 L mm

Family Name

WORLD-BEAM Family

Housing Material

Thermoplastic

Humidity

95% @ 50 C

Indicator

LEDs

Input Output

Discrete

IP Rating

IP67

Lens Material

Acrylic

Light Source

Infrared

Maximum Operating Temperature

70 C

Measurement Range

450 mm

Mechanical Angle

0.6

Minimum Operating Temperature

-20 C

Mounting Type

M18 Threaded

NEMA Rating

NEMA 6

Number of Pins

Operation

Dark-ON/Light-ON

Output

PNP

Response Time

0.6 ms

Sensing Mode

Diffuse

Sensing Range

450

Series

QS18 Series

Standards

cULus Recognized, CE Marked

Supply Voltage

10-30 VDC

Switching Current

100 mA

Technology

Photoelectric

Turn On Delay Time

100 ms

Type

Reflective Sensors

Overview

Banner QS18 Series - All Purpose Photoelectric Sensors | WORLD-BEAM Family:

All purpose photoelectric sensor with universal housing design and 18 mm threaded barrel is an ideal replacement for hundreds of other sensor styles.

Features:

Features a universal housing with an 18 mm threaded lens or side mounts
Replaces hundreds of other sensors
Meets IP67 and NEMA 6 standards for harsh environments
Available in opposed, polarized and non-polarized retroreflective, convergent, regular and wide-angle diffuse, laser, ultrasonic, plastic or glass fiber optic, fixed-field and adjustable-field sensing modes
Offers easy push-button TEACH-mode setup in Expert QS18E and ultrasonic models
Ranges up to 20 m
Features bright LED operating status indicators visible from 360°
Available in models with IO-Link communication for simplified wiring, installation, preventative maintenance, and sensor backup
Select between mechanical and electronic adjustable field

Series QS18 Series

Supply Voltage 10-30 VDC

Switching Current 100 mA

Product Tags:

Photoelectric Proximity Switch

QS18VP6D DC Photoelectric Sensor Switch

All Purpose Photoelectric Limit Switch

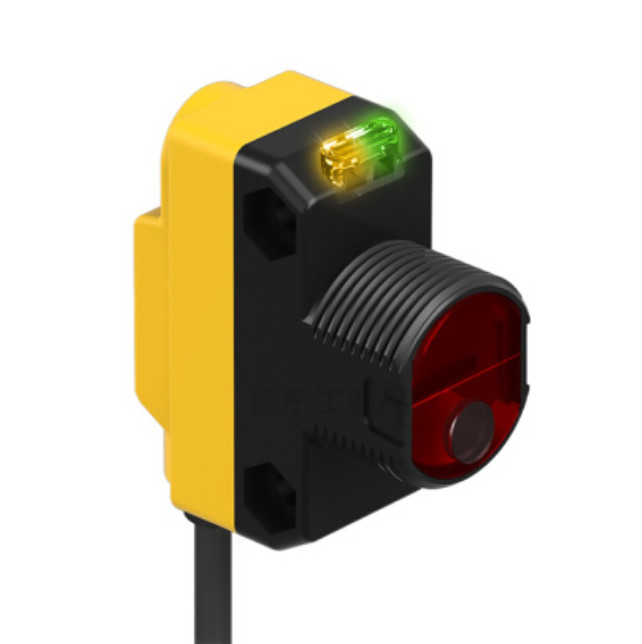

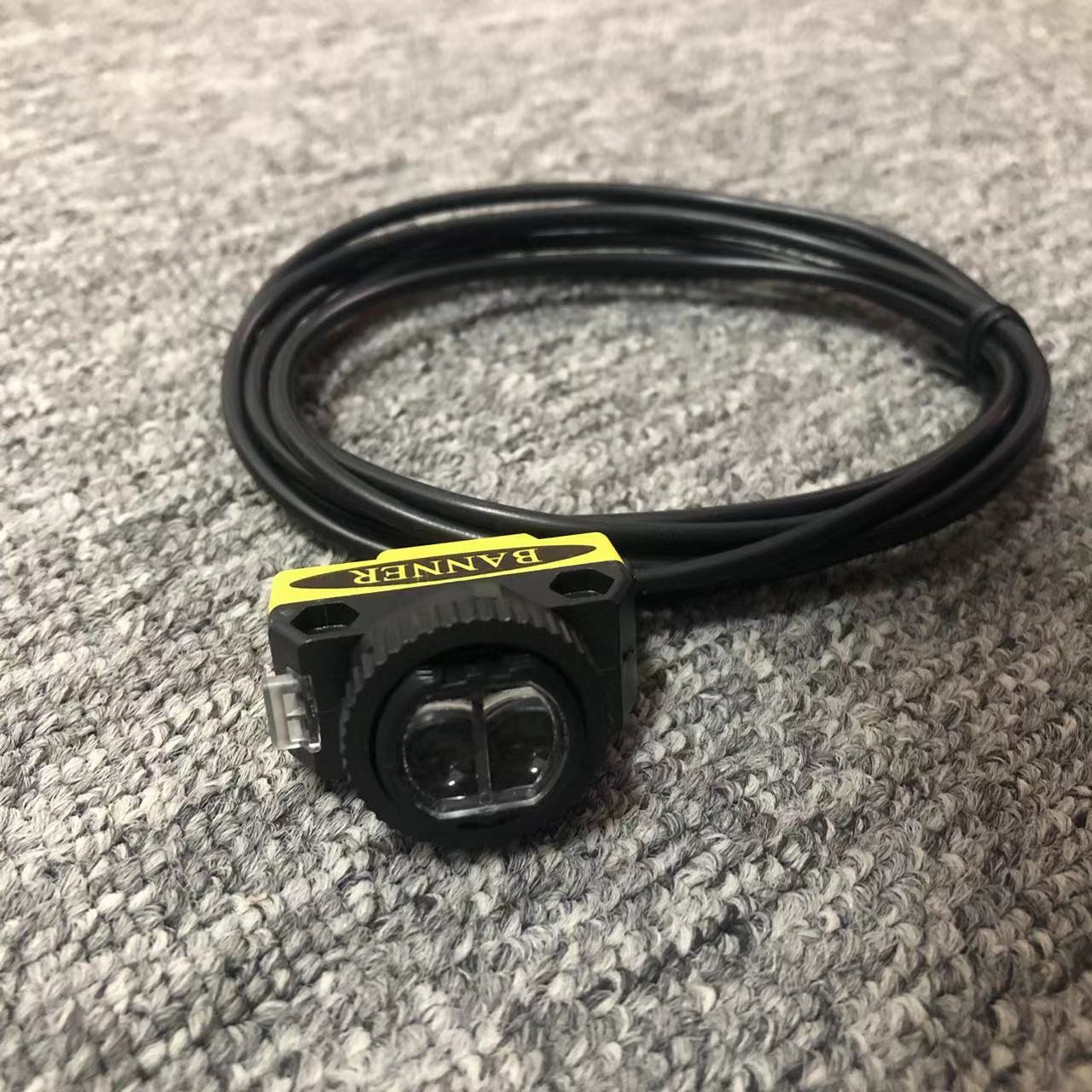

100% New Banner All Purpose Photoelectric Sensor Switch QS18VP6D Images
